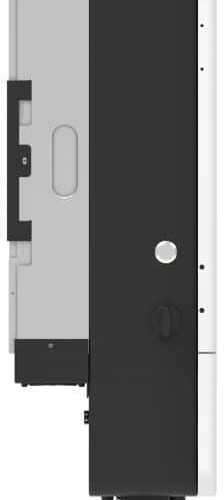

Conexpro DF-40224-H100 solar inverter, 24 V, 4000 W, MPPT 100 A
916.36 €
Wall-mounted inverter for homes, campers, boats. LiFePO4 24 V, MPPT 100 A.
All prices are quoted excluding VAT and do not include delivery costs
The product is available for order in Montenegro, Serbia, Croatia, Slovenia, Germany
Гарантия 2.0 лет
Description
The advanced wall-mounted power source is designed for a wide range of applications, from households, caravans, boats, and vehicles to industrial uses such as network devices and solar systems. It is fully compatible with LiFePO4 batteries (24V), which can be effectively utilized based on customizable settings, ensuring maximum efficiency and a long battery life. The source provides battery charging and AC output power, using energy from a solar panel or from a 230V AC input, depending on the configured parameters.
The system offers three operating modes (AC priority, DC priority, economy mode), supports MPPT regulation, and is equipped with a feature for adapting to various electrical networks (85 ~ 275 V AC, 45 ~ 65 Hz). With an intelligent LCD display and RS485 communication port that allows real-time monitoring of error codes, it is the ideal choice for stable and safe operation even in challenging conditions.
Attention: This inverter is equipped with multifunctional sockets (US/UK/EU), however, it does not comply with the Czech type E. Please check compatibility with your devices before purchasing.
Key Features
- Sine wave output 230V AC – power up to 4000 W
- High-efficiency toroidal transformer with lower losses

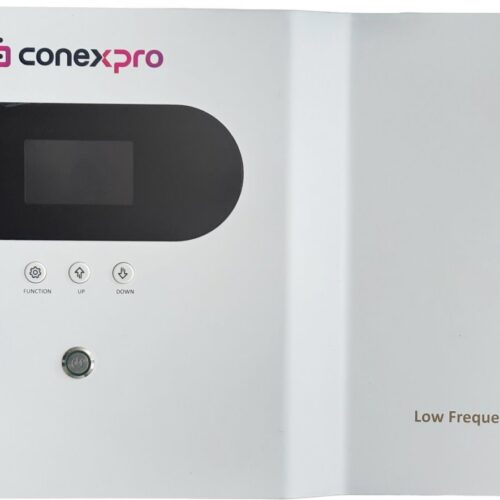

- Intelligent built-in LCD display
- Configurable AC charging current 0–30 A; more flexible battery capacity configuration
- 24V battery system
- Three configurable operating modes: AC priority, DC priority, economy mode
- Built-in MPPT regulator – 30 to 100V DC / max. 60 A / max. 1680 W
- Battery charging from solar panel and 230V AC
- Support for diesel or gasoline generator, adaptation to challenging power conditions
- RS485 communication port + expansion slot for Wi-Fi/GPRS
Package Contents
- Inverter
- (2) DC cables to battery – 80 cm
Additional information
| Weight | 26.500 kg |
|---|---|
| Inverter type | Off-grid |
| Battery type | Low voltage (LV) |
| Number of MPPT | 1 |
| Phase type | 1-phase |
| AC output power, kW |
About Brands
About Conexpro
Conexpro is a Czech brand from Plzeň that produces equipment for network infrastructure and power supply: cables, power sources, batteries and solutions for solar systems.We offer Conexpro off-grid solar inverters with a built-in MPPT charge controller for 12 V and 24 V batteries, rated from 700 to 4000 W, plus accessories: a Wi-Fi dongle for monitoring, a USB to RS485 converter, the Solar Sell logic module for Deye inverters and an MC4 connector assembly tool.
