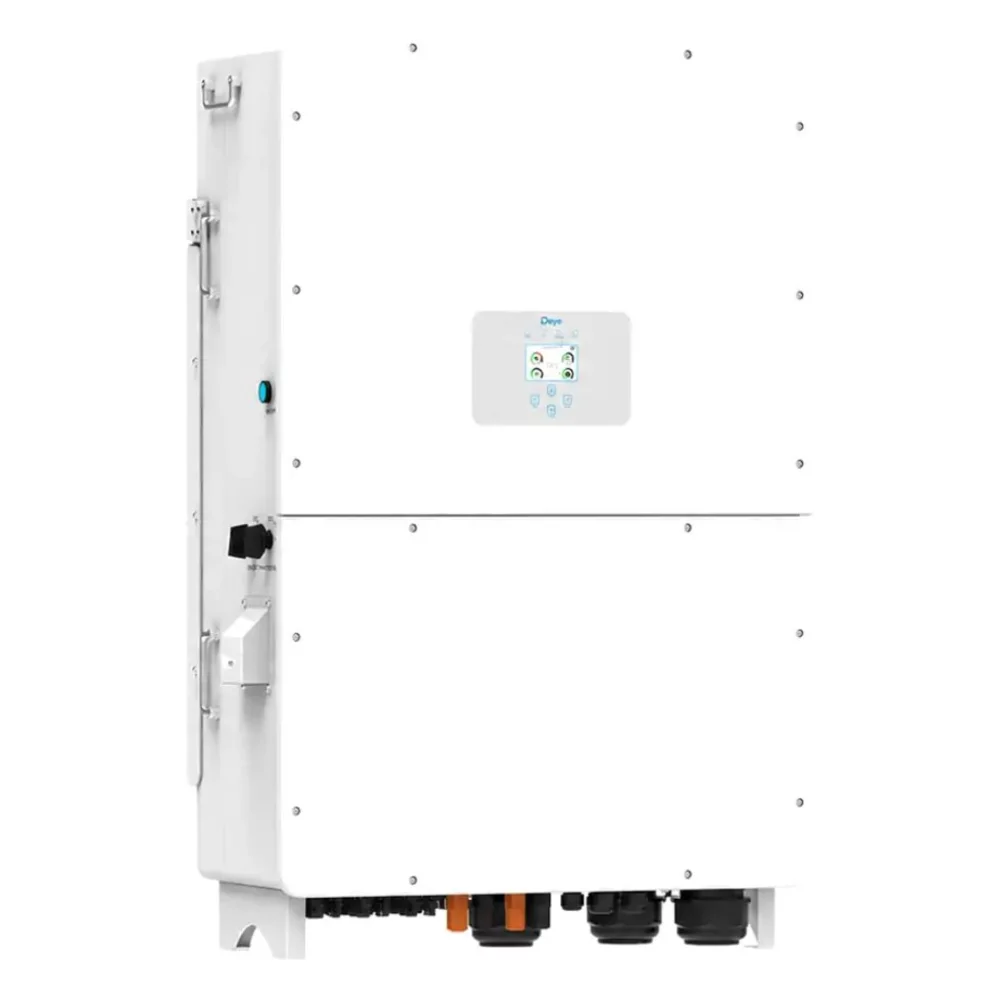

DEYE SUN-125K-SG02HP3-EU-GM10 Hybrid Inverter 125 kW, Three-Phase, HV
8,346.48 €
DEYE’s most powerful three-phase hybrid: 125 kW, 10 MPPT, 160–1000 V batteries, 98.7% efficiency.
All prices are quoted excluding VAT and do not include delivery costs
The product is available for order in Montenegro, Serbia, Croatia, Slovenia, Germany
Гарантия 10 лет
Description
A three-phase DEYE hybrid inverter rated at 125 kW for commercial and industrial power plants. It works with 160–1000 V high-voltage batteries, which reduces heat losses and raises system efficiency to 98.7%.
The inverter has 10 MPPT trackers and up to 20 strings, up to 250 kW of PV input, two battery inputs with up to 200 A charge/discharge current and up to 250 A AC pass-through. Monitoring and configuration via the DEYE cloud platform.
Technical specifications
| Communication interfaces | RS-485, RS-232, Wi-Fi, CAN |
| Battery inputs | 2 |
| Connector type | MC4 |
| Other | LCD display |
| Number of phases | 3 |
| Max. DC input power, kW | 250 |
| Max. output power, kW | 125 |
| Max. output current, A | 181,2 |
| Max. continuous AC passthrough current, A | 250 |
| Number of MPPT | 10 |
| Number of strings | 2+2+2+2+2+2+2+2+2+2 |
| Max. PV voltage, V | 1000 |
| PV input current, A | 42+42+42+42+42+42+42+42+42+42 |
| PV short-circuit current, A | 63+63+63+63+63+63+63+63+63+63 |
| MPPT operating range, V | 150 – 850 |
| Battery system | High voltage (HV) |
| Battery voltage range, V | 160 – 1000V DC |
| Max. charge/discharge current, A | 200 |
| Efficiency, % | 98,7 |
| Protection rating | IP65 |
| Mounting | Wall-mounted |
| Installation | Outdoor |
| Operating temperature, °C | -40 – 60 |
| Weight, kg | 162 |
| Depth, mm | 344 |
| Width, mm | 734 |
| Height, mm | 1091 |
Additional information
| Weight | 162 kg |
|---|---|
| Inverter type | Hybrid |
| Phase type | 3-phase |
| Battery type | High voltage (HV) |
| Number of MPPT | 10 |
| AC output power, kW |
