DEYE SUN-12K-G06P3-EU-AM2-P1 On-Grid Inverter 12 kW, Three-Phase, 2 MPPT
676.06 €
Three-phase 12 kW DEYE G06 on-grid inverter, MPPT 120–1000 V, IP65.
All prices are quoted excluding VAT and do not include delivery costs
The product is available for order in Montenegro, Serbia, Croatia, Slovenia, Germany
Гарантия 5 лет
Description

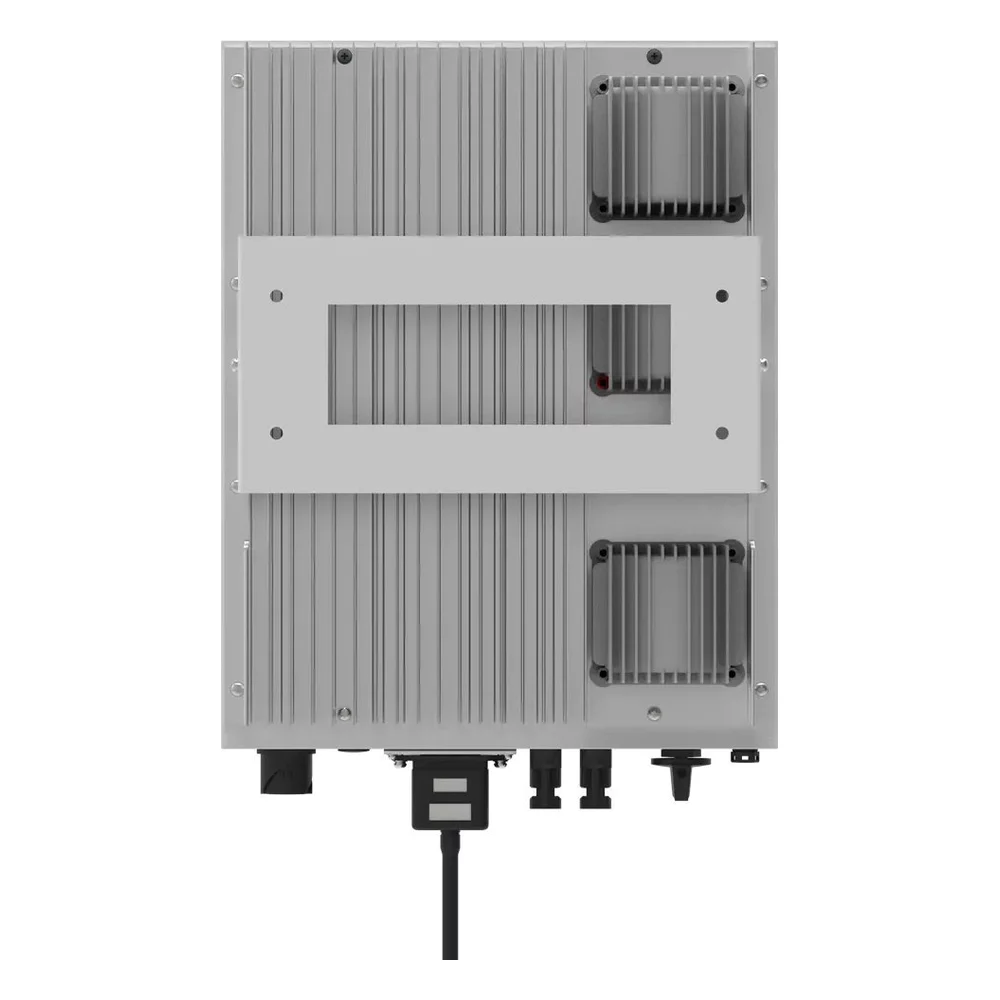

A three-phase on-grid DEYE G06 series inverter rated at 12 kW for rooftop solar plants on homes and businesses. Two MPPT trackers with a wide 120–1000 V range let you connect panels with different orientations, and the compact IP65 housing mounts easily on an outdoor wall.
The inverter connects to the DEYE cloud platform: monitoring, remote configuration and firmware updates are available from a smartphone.
Key features
- 2 MPPT, 120–1000 V range
- IP65 protection, −25 to +60 °C

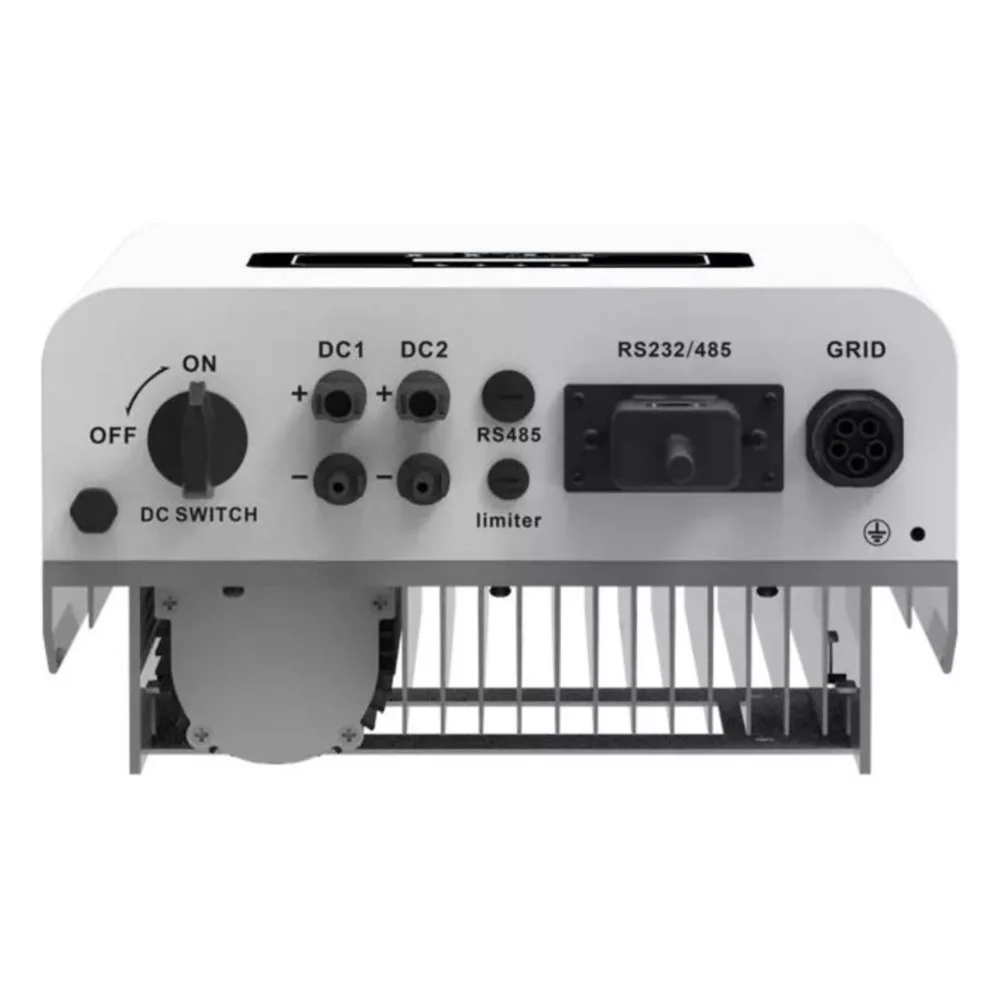

- LCD display, Wi-Fi, RS-485
- Remote shutdown and monitoring
Technical specifications
| Communication interfaces | RS-485, RS-232, Wi-Fi |
| Connector type | MC4 |
| Other | LCD display |
| Number of phases | 3 |
| Max. DC input power, kW | 18 |
| Max. output power, kW | 12 |
| Max. output current, A | 19,2 |
| Number of MPPT | 2 |
| Number of strings | 1+1 |
| PV input current, A | 20+20 |
| MPPT operating range, V | 120 – 1000 |
| Battery system | No |
| Efficiency, % | 98,3 |
| Protection rating | IP65 |

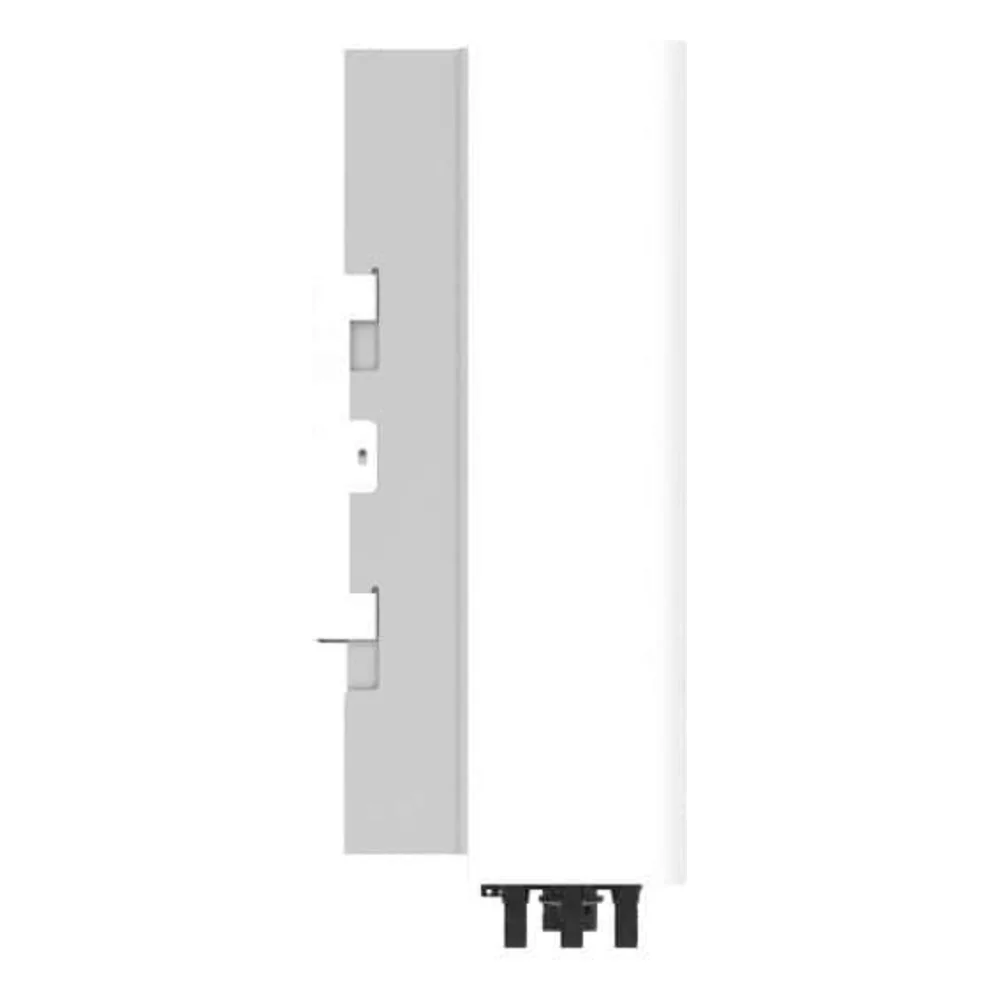

| Mounting | Wall-mounted |
| Installation | Outdoor |
| Operating temperature, °C | -25 – 60 |
| Weight, kg | 11 |
| Depth, mm | 178 |
| Width, mm | 283 |
| Height, mm | 463 |
Additional information
| Weight | 11 kg |
|---|---|
| Inverter type | On-grid |
| Phase type | 3-phase |
| Battery type | No battery |
| Number of MPPT | 2 |
| AC output power, kW |
About Brands
About Deye
Ningbo Deye Inverter Technology Co., Ltd. founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of Deye Group. With a plant area of over 15,000㎡ and complete production and testing equipment, Deye has become a major player in the global solar inverter market.
Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plant solutions.
Also, Deye offers the right device for each application: for all module types, for grid connection and stand-alone grids as well as hybrid inverter systems, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power ranges from 1-136kW, Hybrid inverter 3kW-50kW, and microinverter 300W-2000W.
