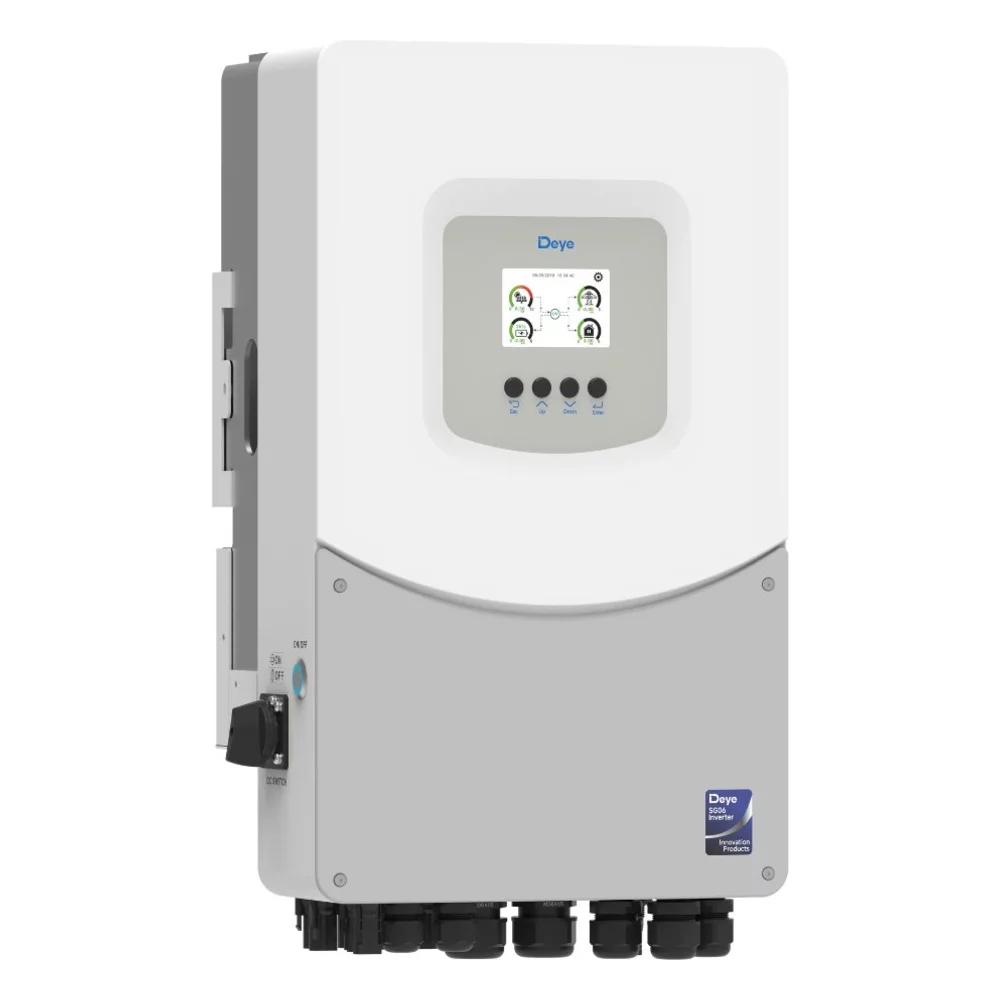

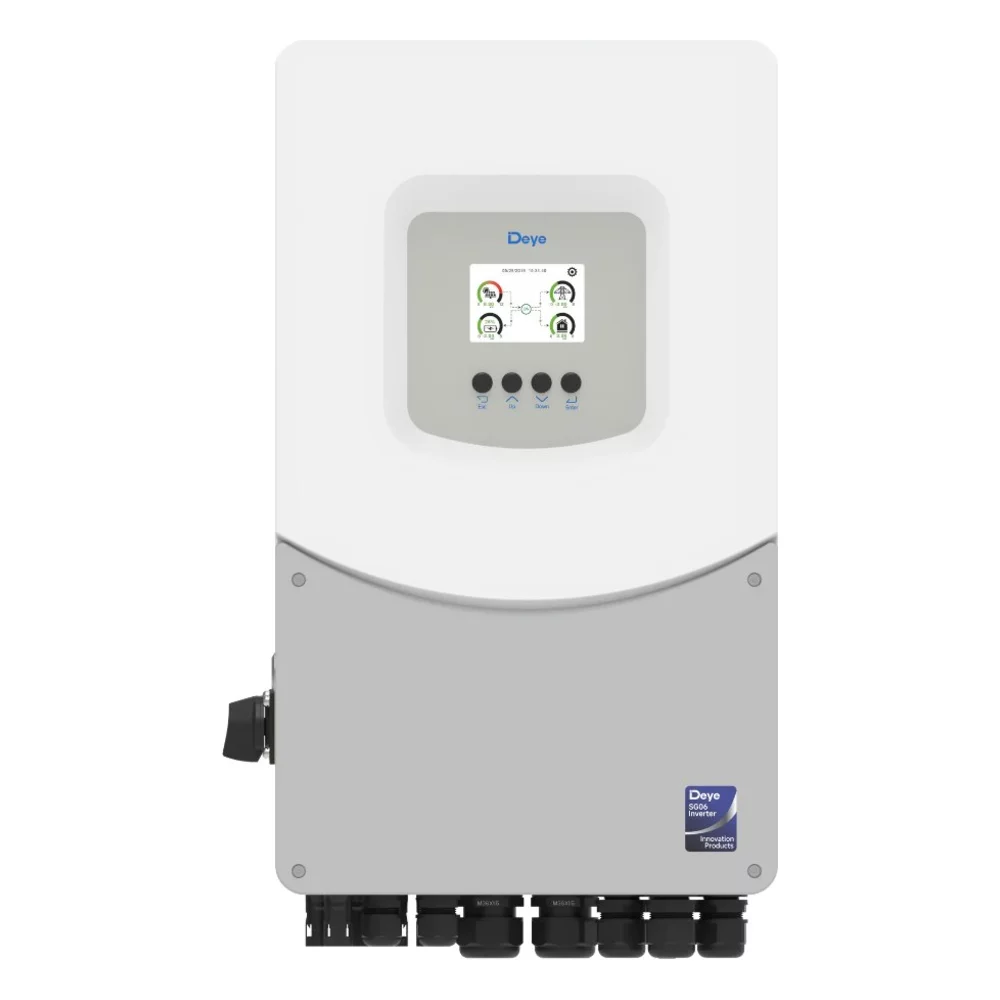

DEYE SUN-8K-SG06LP1-EU-BM3 Hybrid Inverter 8 kW, Single-Phase, LV, 6th Generation
1,168.51 €
Single-phase 6th-generation DEYE hybrid inverter, 8 kW, 3 MPPT. For 48 V low-voltage batteries.
All prices are quoted excluding VAT and do not include delivery costs
The product is available for order in Montenegro, Serbia, Croatia, Slovenia, Germany
Гарантия 5 лет
Description
A 6th-generation single-phase DEYE hybrid inverter rated up to 8 kW for homes and small commercial sites. It maximises self-consumption of solar power, stores surplus energy in the battery and keeps the house powered during grid outages.
The inverter works with 40–60 V low-voltage batteries, communicates with the BMS via CAN/RS-485 and supports remote monitoring: settings and firmware updates are done through the DEYE cloud platform.
Key features
- Colour touchscreen LCD, IP65 protection
- 6 time slots for battery charging/discharging
- Charge/discharge current up to 185 A
- DC and AC coupling for retrofitting existing systems
- Diesel generator support, Smart Load and peak shaving
- 4 ms switchover from on-grid to off-grid
Technical specifications
| BMS communication | CAN/RS-485 |
| Communication interfaces | RS-232, CAN/RS-485, Modbus |
| Battery inputs | 1 |
| Connector type | MC4 |
| Other | LCD display |
| Number of phases | 1 |
| Max. DC input power, kW | 12,8 |
| Max. output power, kW | 8 |
| Max. output current, A | 34,8 |
| Max. continuous AC passthrough current, A | 65 |
| Number of MPPT | 3 |
| Number of strings | 2+1+1 |
| Output voltage, V | 230V AC |
| Max. PV voltage, V | 500 |
| PV input current, A | 36+18+18 |
| PV short-circuit current, A | 54+27+27 |
| MPPT operating range, V | 150 – 425 |
| Battery system | Low voltage (LV) |
| Battery voltage range, V | 40 – 60V DC |
| Max. charge/discharge current, A | 185 |
| Efficiency, % | 97,6 |
| Protection rating | IP65 |
| Mounting | Wall-mounted |
| Installation | Outdoor |
| Operating temperature, °C | -40 – 60 |
| Weight, kg | 23,7 |
| Depth, mm | 227 |
| Width, mm | 340 |
| Height, mm | 580 |
Additional information
| Weight | 23.7 kg |
|---|---|
| Inverter type | Hybrid |
| Phase type | 1-phase |
| Battery type | Low voltage (LV) |
| Number of MPPT | 3 |
| AC output power, kW |
About Brands
About Deye
Ningbo Deye Inverter Technology Co., Ltd. founded in 2007 with a registered capital of 300 million RMB, is one of China’s high-tech enterprises and a subsidiary of Deye Group. With a plant area of over 15,000㎡ and complete production and testing equipment, Deye has become a major player in the global solar inverter market.
Ningbo Deye Inverter Technology Co., Ltd. is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plant solutions.
Also, Deye offers the right device for each application: for all module types, for grid connection and stand-alone grids as well as hybrid inverter systems, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power ranges from 1-136kW, Hybrid inverter 3kW-50kW, and microinverter 300W-2000W.
